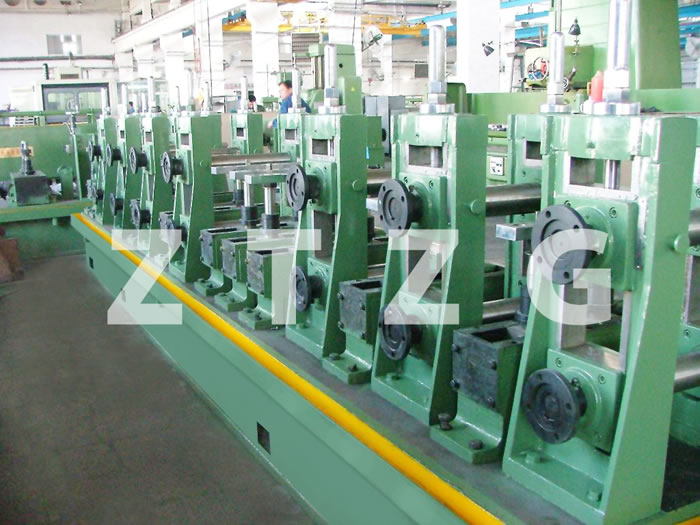

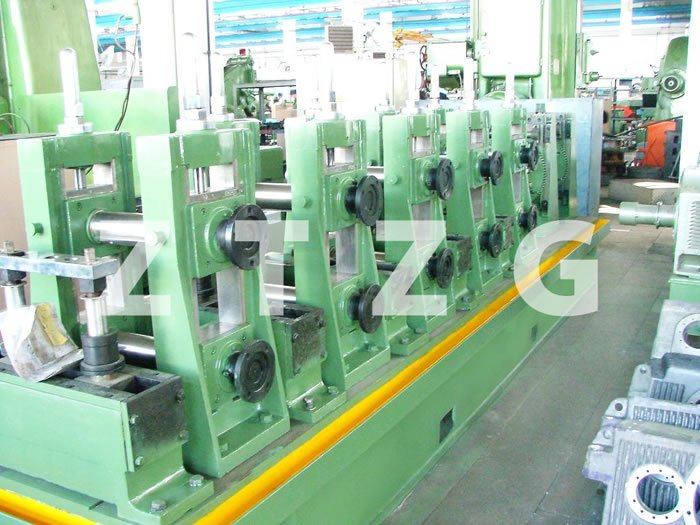

This pipe making machine is designed to produce welded pipes of 60mm-140mm in OD and 2.0mm-5.0mm in wall thickness, as well as corresponding square and rectangular pipes which are commonly used in metallurgy, construction, transportation, machinery and vehicle industries.
Basic technical information
Raw Material: Carbon steel & Low alloy steel coil
Coil ID: 520-680mm
Coil OD: Max 1700mm
Coil Weight: 5t
Production Speed: This pipe making machine is able to manufacture 20-60 m welded pipes each minute.
Direction: left or right decided by customers.
Capacity: 30,000ton/year
Line Area: 80m (length)×6.5m (width)
Tube Bottom Passline (Above floor level): +800 mm
Specifications of pipe making machine, 140
| Model | Specification(mm) | Thickness (mm) | Mill Installed Capacity (kw) | Line Area(m) - programmable | Working Speed (M/min.) | |
| Circular | Rectangular & Square | |||||
| 140 | Ф60-Ф140 | 50mm×50mm - 110mm×110mm | 2-5 | 180KW | 80m*6.5m | 60 |
As a China pipe making machine manufacturer, We provides a comprehensive range of slitting line, stainless steel pipe making machine and more. Our company has been ISO9001:2008 certified. In addition, our tube making machine products are economically priced because we greatly reduced our production cost for our convenient transportation.
For more detailed information, please continue browsing our website or call us directly.
