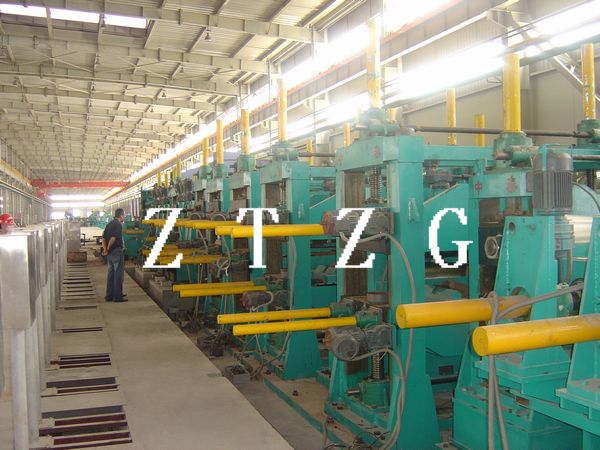

660 high frequency longitudinal welded pipe production line is designed to produce welded pipes of 325mm-660mm in OD and 6.0mm-20.0mm in wall thickness, as well as corresponding square & rectangular pipes which are regularly used in metallurgy, construction, transportation, machinery and vehicle industries.
In order to make customers better understand We pipe production line, we offer the following technical information. For more details, please contact us directly.
Basic information
Raw Material: Carbon steel & Low alloy steel coil
Coil ID: 580-760mm
Coil OD: Max 2300mm
Coil Weight: 40t
Production Speed: 20 m/min
Production capacity: 250,000ton/year
Direction: left or right decided by customers.
Line Area: 350m (length) ×35m (width)
Tube Bottom Passline (Above floor level): +1000 mm
Technical specifications of pipe production line, 660
| Model | Specification(mm) | Thickness (mm) | Mill Installed Capacity(kw) | Line Area(m) - programmable | Working Speed (M/min.) | |
| Circular | Rectangular & Square | |||||
| 660 | Ф325-Ф660 | 250mmx250mm - 520mmx520mm | 6-20 | 1200KW | 350m*35m | 20 |
As a specialized pipe production line manufacturer in China, In addition to pipe making machine, we also provide welded pipe making machine, stainless steel pipe making machine, and other tube making machine products. Due to their high quality and reliability, our products are exported to countries like United States, Kazakhstan, Uzbekistan, Iran, among others. Moreover, our location in Shijiazhuang affords us convenient transportation, which allows us to quickly and cheaply transport our products.
If you are interested in our products, we welcome you to contact us!
