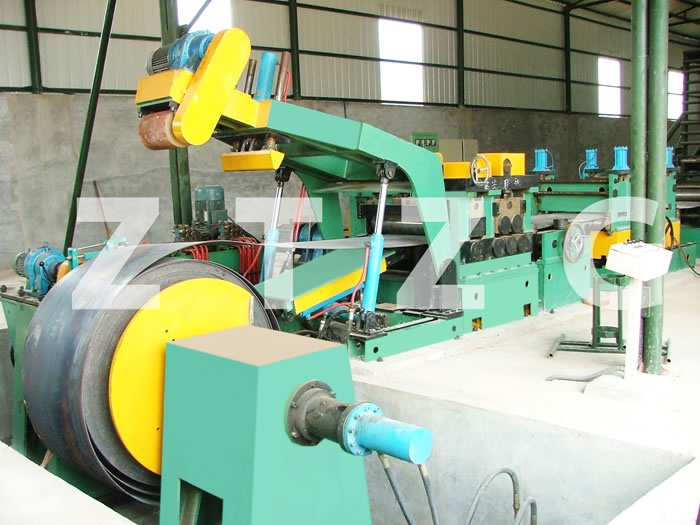

Uncoiler, Straightening Head, Flattener

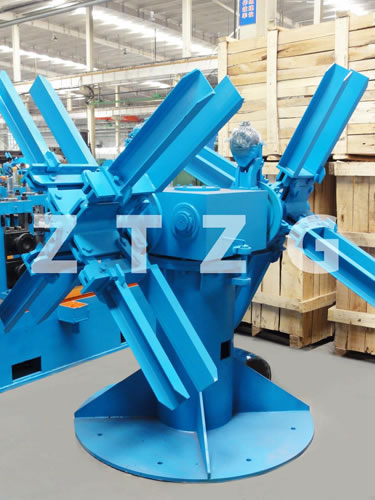

As a type of auxiliary equipment for pipe making machine, uncoiler is designed to hold the strip steel coil and then unwind the strip coil into steel strip, thus making the next pipe making step easier. When the steel strip comes with a large thickness, a straightening head is necessary.
A flattener is used for flattening the ends of steel strip. Given below is the structure and working principle of flattener.
The flattener is designed with a pair of punch roll in the feeding part, and the pinch roll is depressed by a hydraulic cylinder and the flattening roller is depressed in decelerating manner through a worm gear. Meanwhile, the synchronous operation of worm wheels at different locations is achieved by sleeve coupling, thus ensuring the upper flattening roller and the lower fixed roller are paralleled so as to achieve flattening function.

We are an ISO9001:2008 certified uncoiler, straightening head and flattener manufacturer in China. Our products include pipe making machine, cold rolled section steel forming machine and pipe making machine auxiliary equipment like moulds, accumulator, and welding equipment, etc. These products are well received in many countries throughout the world.
For further information regarding our tube making machine and related products, please feel free to contact us.
