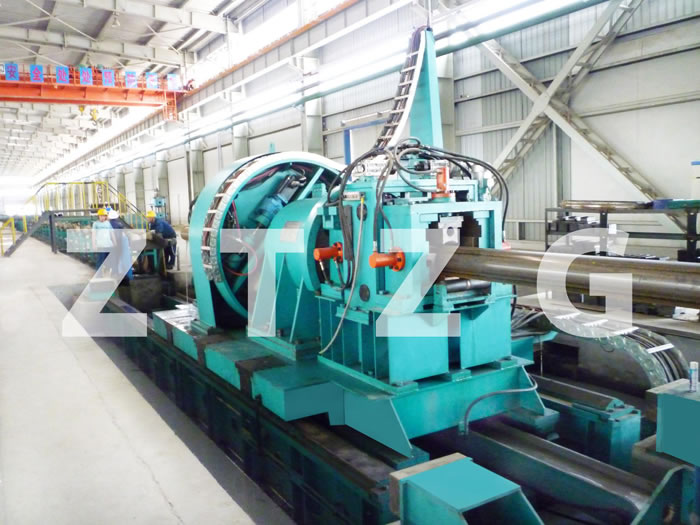

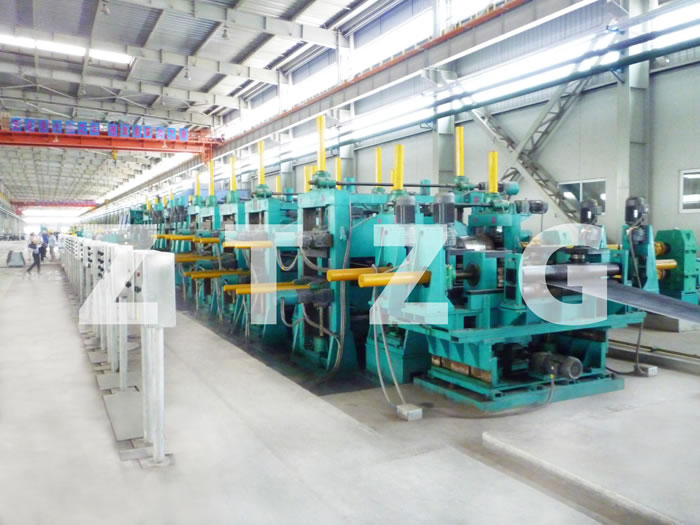

325 high frequency longitudinal welded pipe production line is designed to produce welded pipes of 140mm-325mm in OD and 4.0mm-12.7mm in wall thickness, as well as corresponding square and rectangular pipes. The pipes or tubes manufactured by We pipe making machine is commonly used in metallurgy, construction, transportation, machinery and vehicle industries.
Basic technical information
Raw Material: Carbon steel & Low alloy steel coil
Coil ID: 610-700mm
Coil OD: Max 2000mm
Coil Weight: 15t
Production Speed: 40m/min
Production capacity: 55,000 ton/year
Direction: left or right decided by customers.
Line Area: 130m (length) ×11m (width)
Tube Bottom Passline (Above floor level): +950 mm
Specifications of longitudinal welding pipe production line, 325
| Model | Specification(mm) | Thickness (mm) | Mill Installed Capacity (kw) | Line Area(m) - programmable | Working Speed (M/min.) | |
| Circular | Rectangular & Square | |||||
| 325 | Ф140-Ф325 | 90mm×90mm - 250mm×250mm | 4-12.7 | 430KW | 130m*11m | 40 |
As a Chinese longitudinal welding pipe production line manufacturer with many years of experience, we are able to provide an extensive line of tube making machine products, including slitting line, stainless steel pipe making machine, etc. Through the constant work of our dedicated staff, we have received the ISO9001:2008 certificate. High quality and economically priced, our products are sought after by customers from United States, Kazakhstan, Uzbekistan, Iran, among others.
If you are in search of any pipe product, please don't hesitate to contact us!
