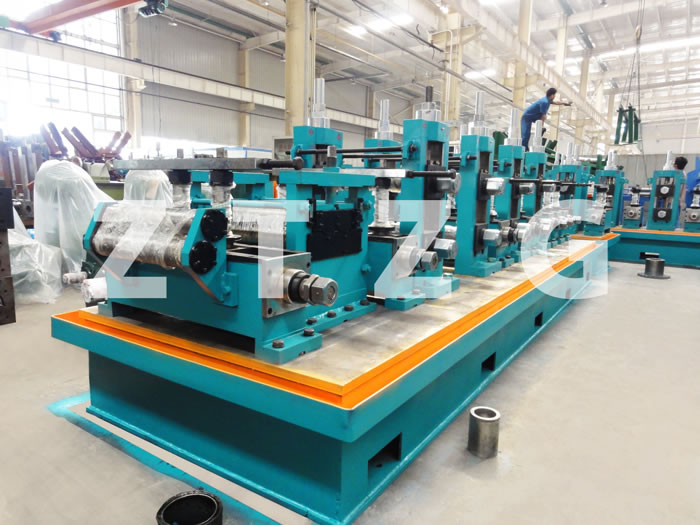

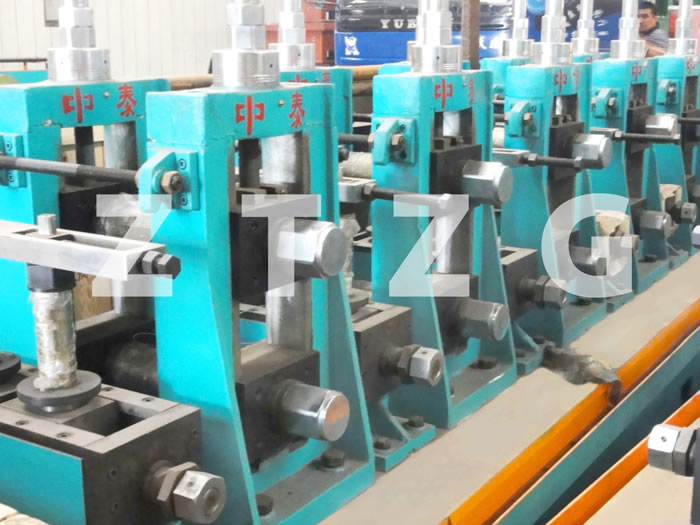

114 high frequency longitudinal welded pipe production line is designed to produce welded pipes of 48mm-114mm in OD and 1.5mm-4.5mm in wall thickness, as well as corresponding square and rectangular pipes. The welded pipe manufactured by this pipe making machine is ideal for use in metallurgy, construction, transportation, machinery and vehicle industries.
Basic technical information
Raw Material: Carbon steel & Low alloy steel coil
Coil ID: 450-520mm
Coil OD: Max 1600mm
Coil Weight: 3t
Production Speed: 20-65 m/min
Direction: left or right decided by customers.
Capacity: 30,000ton/year
Line Area: 78m(length) ×6m (width)
Tube Bottom Passline (Above floor level) : +800 mm
Specifications of pipe making machine, 114
| Model | Specification(mm) | Thickness (mm) | Mill Installed Capacity(kw) | Line Area(m) - programmable | Working Speed (M/min.) | |
| Circular | Rectangular & Square | |||||
| 114 | Ф48-Ф114 | 40mm×40mm - 90mm×90mm | 1.5-4.5 | 160KW | 78m*6m | 65 |
As a China pipe making machine manufacturer with many years of experience, we at We can offer customers a wide range of tube making machine products, including auxiliary equipment for pipe making machine and rollers, precision pipe mill, etc. Due to the consistent efforts of our dedicated staff, now our products are high quality and low priced. Therefore, they are well received by our customers in United States, Kazakhstan, Uzbekistan, Syria, Iran, Vietnam, and more countries.
Please feel free to contact us, if you are interested in our pipe making machine!
