Pipe Making Machine, 508

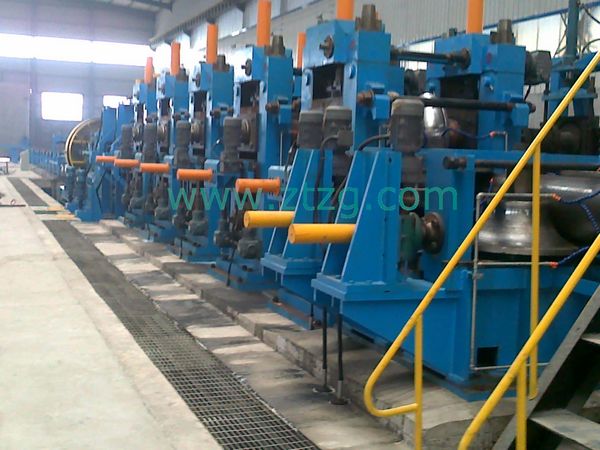

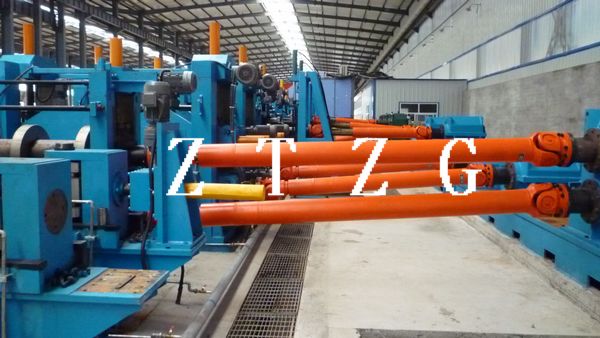

508 high frequency longitudinal welded pipe production line is designed to produce welded pipes of 273mm-508mm in OD and 6.0mm-18.0mm in wall thickness, as well as corresponding square & rectangular pipes. This pipe production line is extensively used for making welded pipes and tubes for use in metallurgy, construction, transportation, machinery, and vehicle industries.

Basic technical information
Raw Material: The pipe production line adopts carbon steel & low alloy steel coil as raw material.
Coil ID: 580-760mm
Coil OD: Max 2300mm
Coil Weight: 35t
Production Speed: 25 m/min
Production capacity: 200,000 ton / year
Direction: left or right decided by customers.
Line Area: 300m (length) ×30m (width)
Tube Bottom Passline (Above floor level): +1000 mm

Specifications of pipe production line, 508

Model Specification(mm) Thickness (mm) Mill Installed Capacity(kw) Line Area(m) - programmable Working Speed (M/min.)
Circular Rectangular & Square
508 Ф273-Ф508 210mmx210mm- 400mmx400mm 6-18 1000KW 300m*30m 25

As an experienced pipe production line manufacturer in China, we offer global customers various kinds of auxiliary equipments for pipe making machine and rollers, stainless steel pipe making machine etc.
Any queries? Please feel free to contact us. We looks forward to working with you.
