 Pipe Making Machine,  50
Feedback Form

Pipe Making Machine, 50

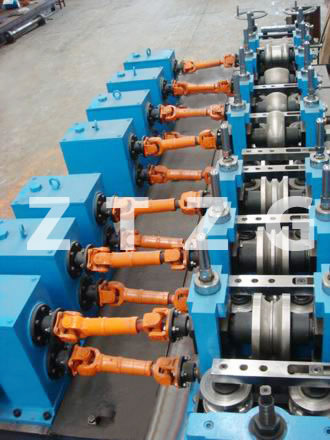

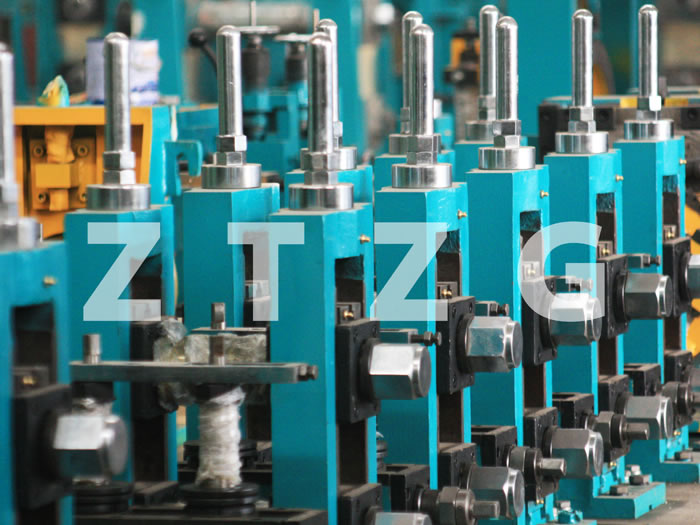

50 high frequency longitudinal welded pipe production line is designed to produce welded pipes of 20mm-50mm in OD and 0.8mm-3.0mm in wall thickness, as well as corresponding square and rectangular pipes. This pipe making machine is ideal for manufacturing welded pipes or tubes used in metallurgy, construction, transportation, machinery, and vehicle industries.

Basic technical information
Raw Material: Carbon steel & Low alloy steel coil
Coil ID: 450-520mm
Coil OD: Max 1500mm
Coil Weight: 1t
Production Speed : 20-100m/min
Production capacity: 15,000ton/year
Direction : left to right or right to left from operator's side decided by customers.
Line Area : 50m(length) ×4m (width)
Tube Bottom Passline (Above floor level) : +800 mm

Specifications of pipe making machine, 50

Model Specification(mm) Thickness (mm) Mill Installed Capacity(kw) Line Area(m) - programmable Working Speed (M/min.)
Circular Rectangular & Square
50 Ф20-Ф50 15mm×15mm - 40mm×40mm 0.8-3.0 65KW 50m*4m 100

We is an ISO9001:2008 certified pipe making machine manufacturer and supplier in China. In order to suit each of our customer's needs, we provide a wide array of products, including abroach cold rolled section steel forming machine, as well as multifunctional cold rolled section steel. Due to their high quality, reliable performance and long life, our products are sought after by customers in United States, Kazakhstan, Uzbekistan, Syria, Iran, Vietnam, Chile, Iraq, among other countries.
If you don't find the information you need here, please call us, and our staff will be happy to assist you.
