ERW Tube Mill, 16mm-63.5mm

ERW Tube Mill

1 ERW76 Sizing section

ERW Tube Mill

ERW219 Forming section

ERW Tube Mill

ERW254 Sizing section

ERW Tube Mill

FF forming technology

ERW Tube Mill

Automatic stacking machine

Production Procedures

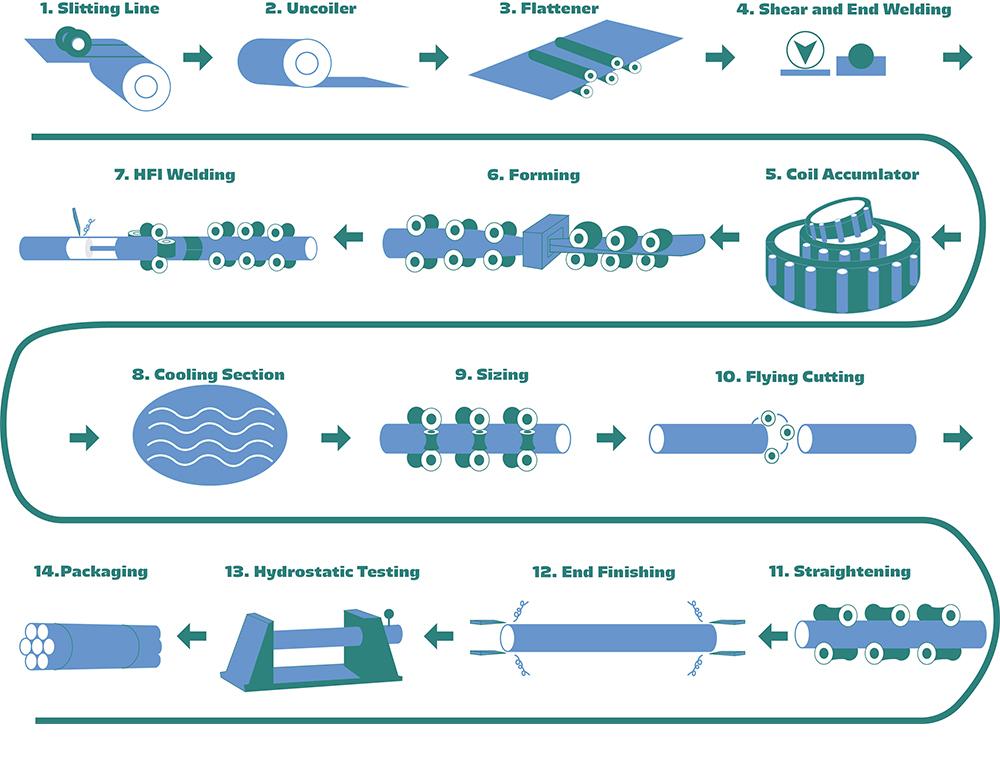

Steel Coil → Double-arm Uncoiler → Shear and End Cutting & Welding → Coil Accumulator → Forming (Flattening Unit + Main Driving Unit + Forming Unit + Guide Unit + High Frequency Induction Welding Unit + Squeeze Roller) → Deburring → Water Cooling → Sizing & Straightening → Flying Saw Cutting → Pipe Conveyor → Packaging → Warehouse Storage

Basic Technical Parameters
Production Capacity
Round Pipe 16mm - 63.5mm
Square & Rectangular Pipe 15*15 - 50*50(60*40)mm
Wall Thickness 0.6 - 3.0mm (Round Pipe)
0.6 - 2.5mm(Square Pipe)
Speed Max. 100m/min
Pipe Length 3m – 12m
Steel Strip Specification
Material Low Carbon Steel, Q235, Q195
Coil Inner Diameter 460 - 510MM
Coil Outer Diameter Max. 1500mm
Strip Width 50mm – 200mm
Strip Thickness 0.6mm – 3.0mm
Max. Coil Weight 2500kgs
Electricity
Dynamic Power 380V, 3-phase, 50Hz (depends on local facilities)
Control Power 220V, single-phase, 50 Hz
Electric Installed Capacity: Approx.200kW
Water Cooling
Reservoir for High Frequency Equipment 15 m³
Reservoir for Circulating Cooling Water 15 m³
Compressed Air
Pressure 0.4MPa
Flow Rate 0.5m³/hour
Line Speed: Max. 100m/min
Overall Production Line Dimension: 60m X 5m (L X W)

Each production line is carefully designed and produced according to customer requirements. We are devoted to providing customers with the best fit line.

Please send us your inquiry if you are seeking more information.
