High frequency welders are used for manufacturing welded steel tubes, pipe and structural squares, and rectangular tubes. These welders are installed inline on a tube mill and are used to weld the open edge seam after it has been formed from a flat strip in the tube mill.
Welding is continuous to up to hundreds of feet per minute and operates uses high frequency sound waves (heat energy). These high frequency sound waves are concentrated on the open edges of the formed tube until the tube is red hot and forced together via a series of rolls to form the welded seam.

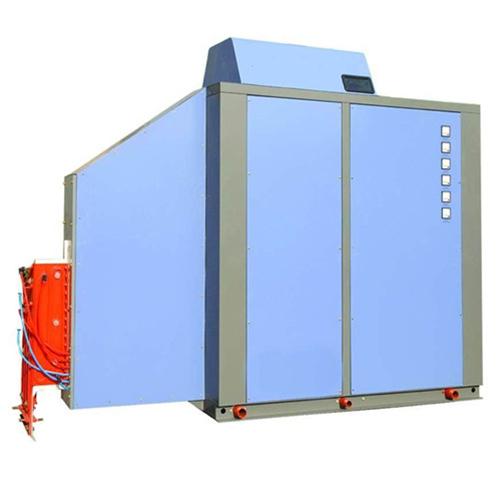

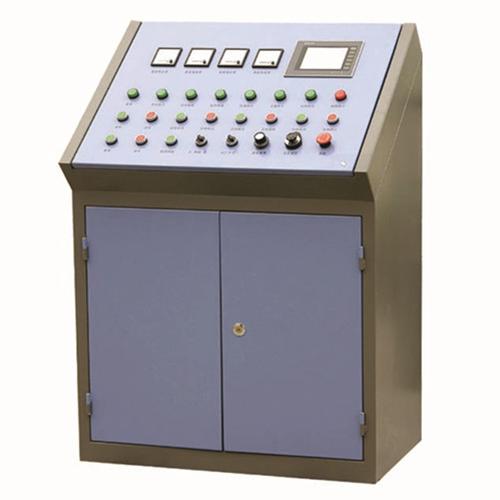

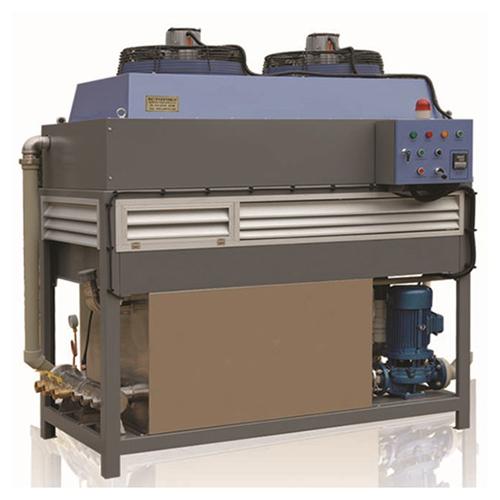

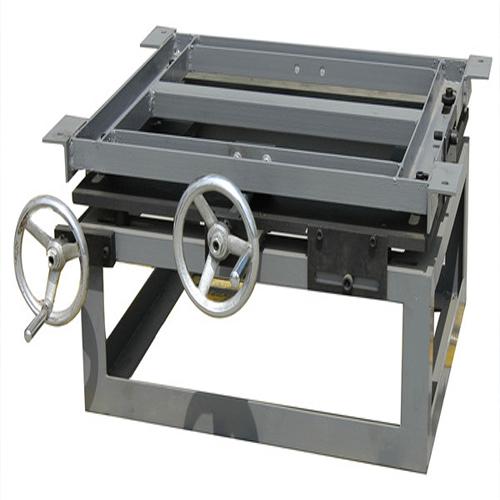

The solid state high frequency welder is composed of the rectifying cabinet, inverter and output cabinet, connecting optical fiber, closed loop water cooling system, central operator console, and mechanical adjustment device.
CharacteristicsOutput Power | DC Power | Model | Rated Voltage | Rated Current | Frequency Range | Working Duty | Applied Range |
60kW | 80kW | GGP60-0.5-HC | 450V | 180A | 450~500kHz | Continuous | Round pipe: φ8~φ20mm Thickness: 0.4~0. 7mm |
100kW | 120kW | GGP100-0.45-HC | 450V | 270A | 400~450kHz | Continuous | Round pipe: φ16~φ45mm Thickness: 0.6~1.5mm |
150kW | 180kW | GGP150-0.4-HC | 450V | 400A | 350~400kHz | Continuous | Round pipe: φ20~φ50mm Thickness: 0.8~2.0mm |
200kW | 240kW | GGP200-0.35-HC | 450V | 530A | 300~350kHz | Continuous | Round pipe: φ45~φ76mm Thickness: 1.5~3.25mm |
250kW | 300kW | GGP250-0.35-HC | 450V | 670A | 300~350kHz | Continuous | Round pipe: φ45~φ89mm Thickness: 1.5~4.0mm |
300kW | 360kW | GGP300-0.35-HC | 450V | 800A | 300~350kHz | Continuous | Round pipe: φ50~φ114mm Square pipe: under 200×200mm Thickness: 2.5~4.0mm |
400kW | 480kW | GGP400-0.3-HC | 450V | 1070A | 200~300kHz | Continuous | Round pipe: φ114~φ165mm Square pipe: under 200×200mm Thickness: 4.0~8.0mm |
500kW | 600kW | GGP500-0.3-HC | 450V | 1330A | 200~300kHz | Continuous | Round pipe: φ165~φ219mm Square pipe: 200×200mm~300×300mm Thickness: 4.0~10.0mm |
600kW | 720kW | GGP600-0.3-HC | 450V | 1600A | 200~300kHz | Continuous | Round pipe: φ219~φ273mm Square pipe: 200×200mm~300×300mm Thickness: 6.0~12.0mm |
700kW | 840kW | GGP700-0.25-HC | 450V | 1870A | 150~250kHz | Continuous | Round pipe: φ219~φ325mm Square pipe: 300×300mm~400×400mm Thickness: 6.0~12.0mm |
800kW | 960kW | GGP800-0.25-HC | 450V | 2130A | 150~250kHz | Continuous | Round pipe: φ273~φ406mm Square pipe: 300×300mm~400×400mm Thickness: 6.0~14.0mm |
1000kW | 1200kW | GGP1000-0.25-HC | 450V | 2670A | 150~250kHz | Continuous | Round pipe: φ355~φ508mm Square pipe: 300×300mm~500×500m Thickness: 4.0~16.0mm |
1200kW | 1440kW | GGP1200-0.25-HC | 450V | 3200A | 150~250kHz | Continuous | Round pipe: φ325~φ610mm Square pipe: 300×300mm~500×500mm Thickness: 4.0~20.0mm |
